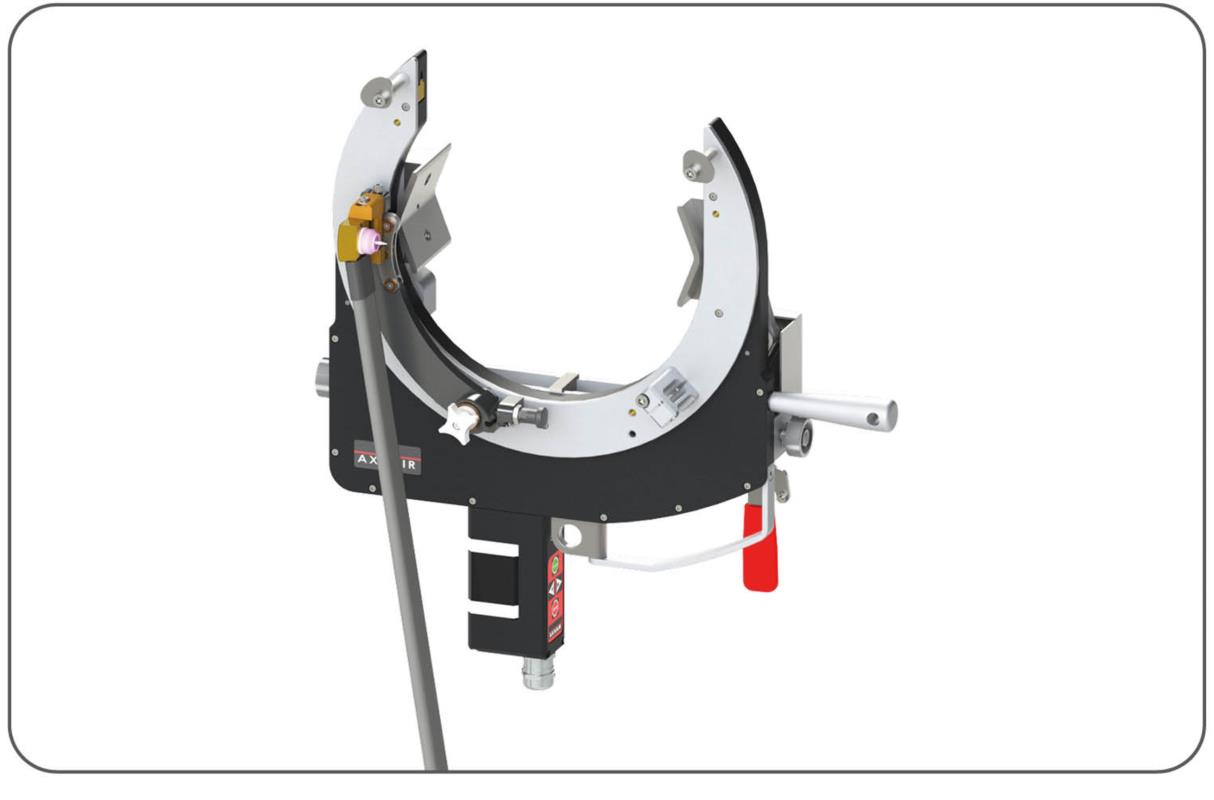

OPEN HEAD WELDING SATO-220E41
Range: ø38 - ø220mm
Open welding head with symmetrical clamping system, offering a very wide range of use to make very high quality welds in a minimum space.
Easy to use: Intuitive interface and parameters adapted to the characteristics of the tubes integrated into the SAXX power sources range.
Quality and repeatability of welds to ensure high productivity.
TECHNICAL CHARACTERISTICS
Straight motor
Water cooled welding torch
- Powered by SAXX power sources
- Mechanical Roll tracking: insures electrode distance without marking the tube
- Symmetrical quick clamping through lever
- Motor with encoder : allows for tungsten electrode start-up at all angles and a wide range of diameters
- Axial adjustment of the electrode
- Low rotating free space around the tube: 175 mm radius from center of tube
- Weight: 9,4 Kg / 22 lbs (without cables)
- Very compact design
- Two motor positions available
-
